复合动力灾害钻孔卸压和高效抽采一体化防治技术

Integrated prevention and control technology of unloading pressure from boreholes and high-efficiency extraction for compound power disasters

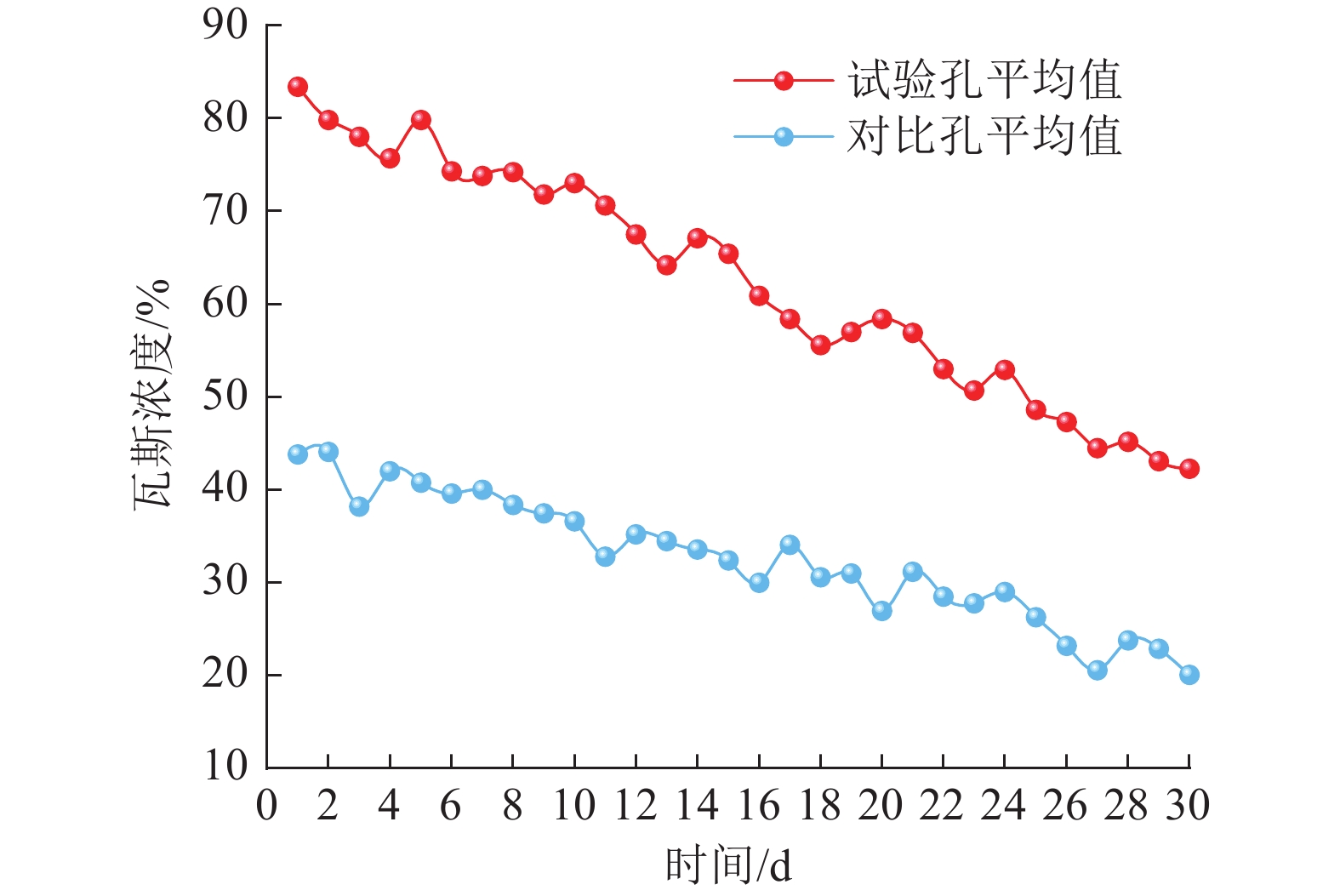

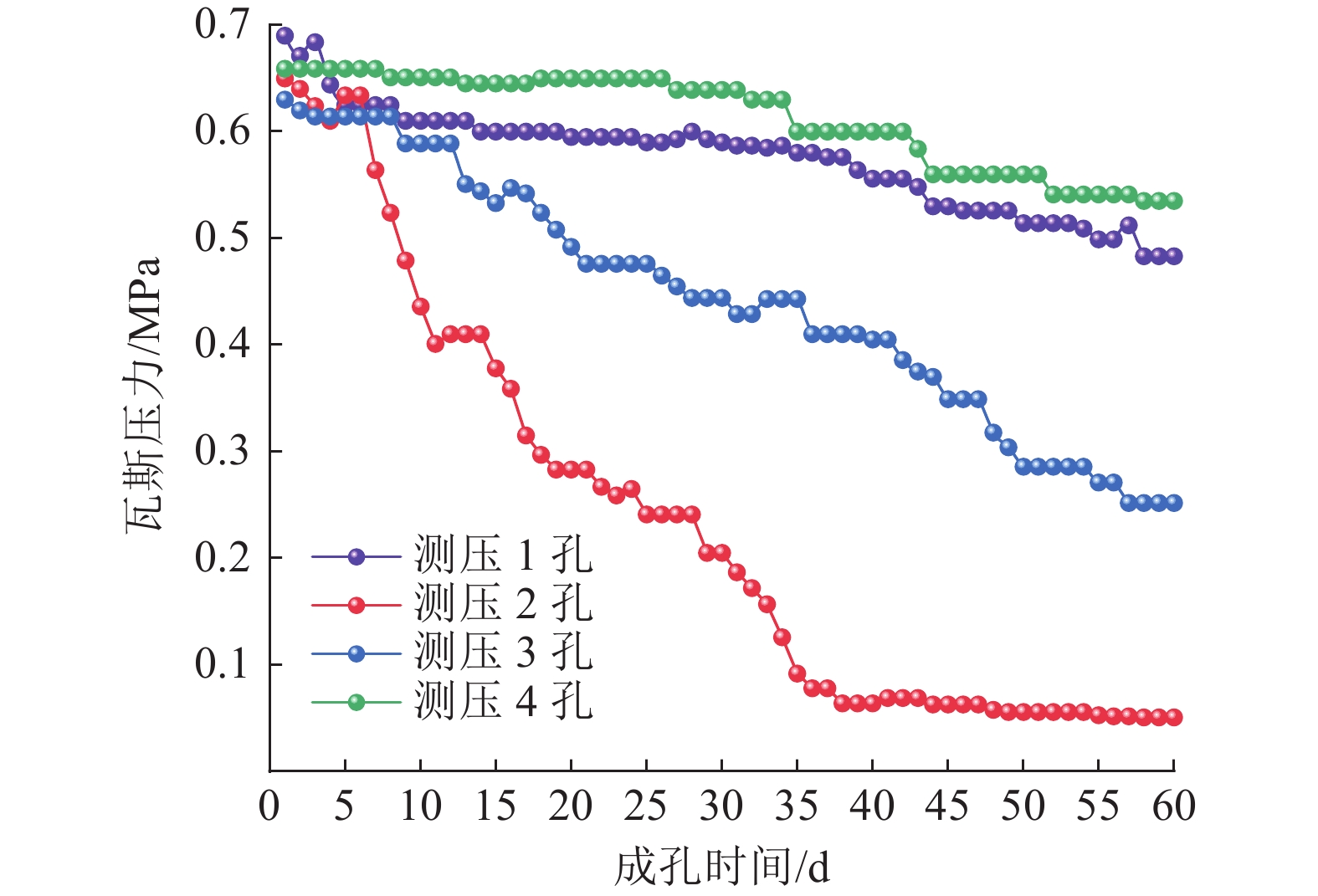

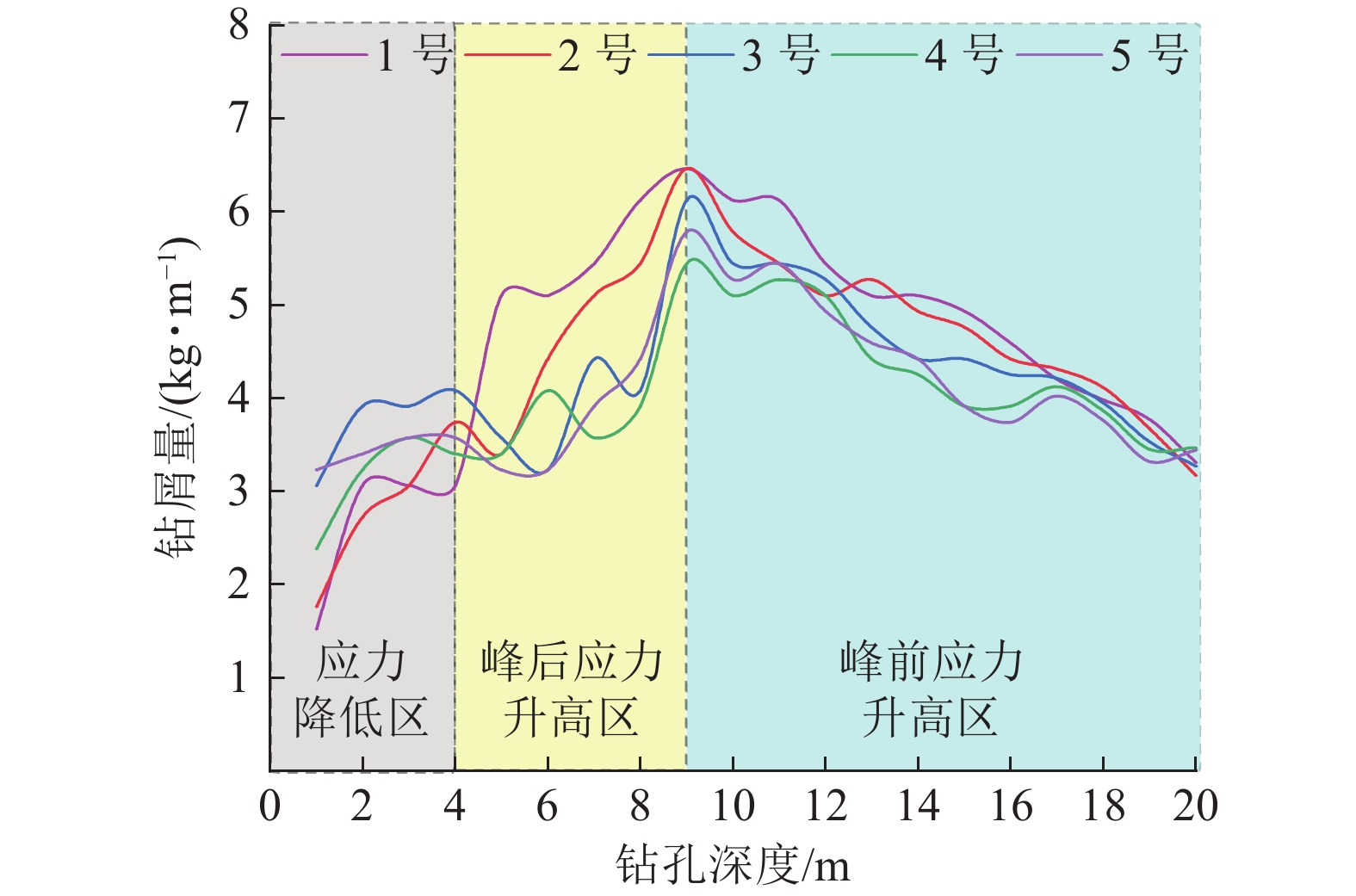

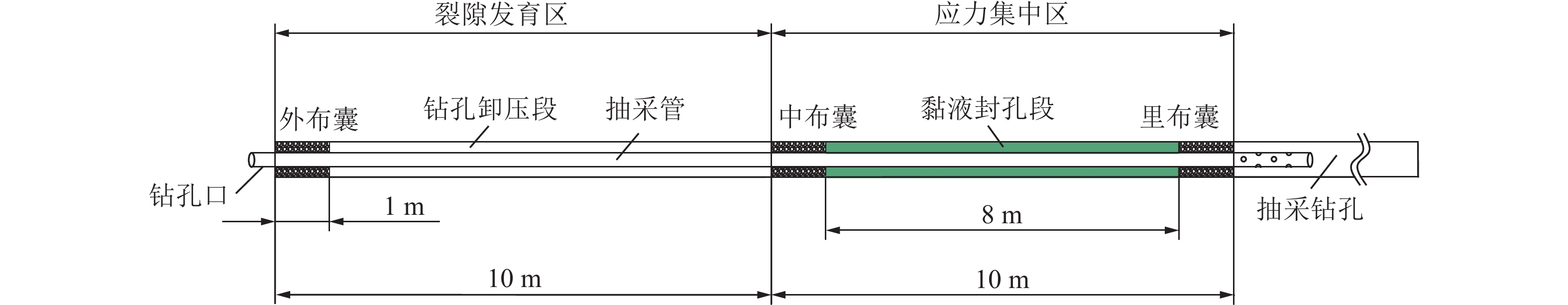

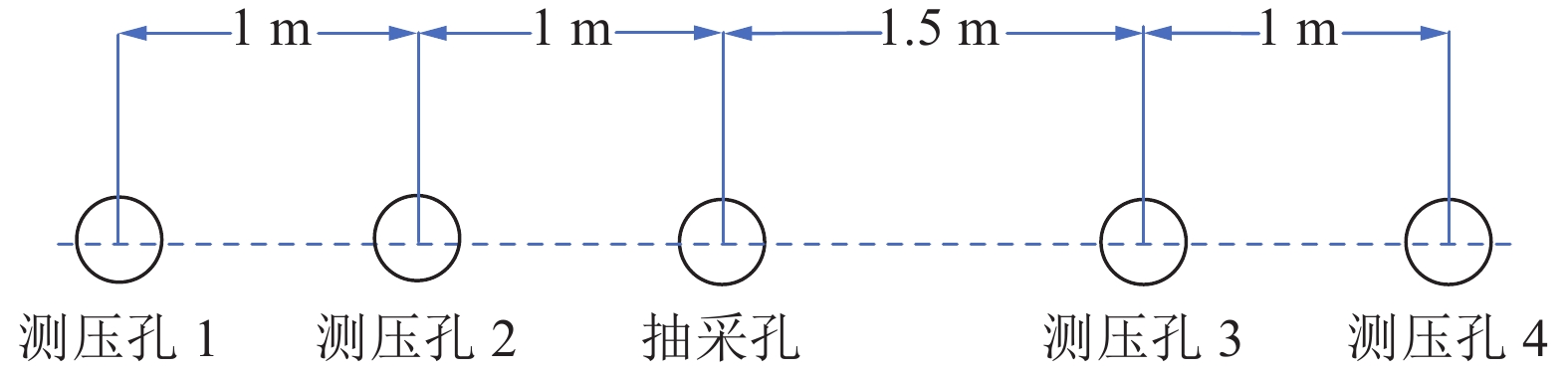

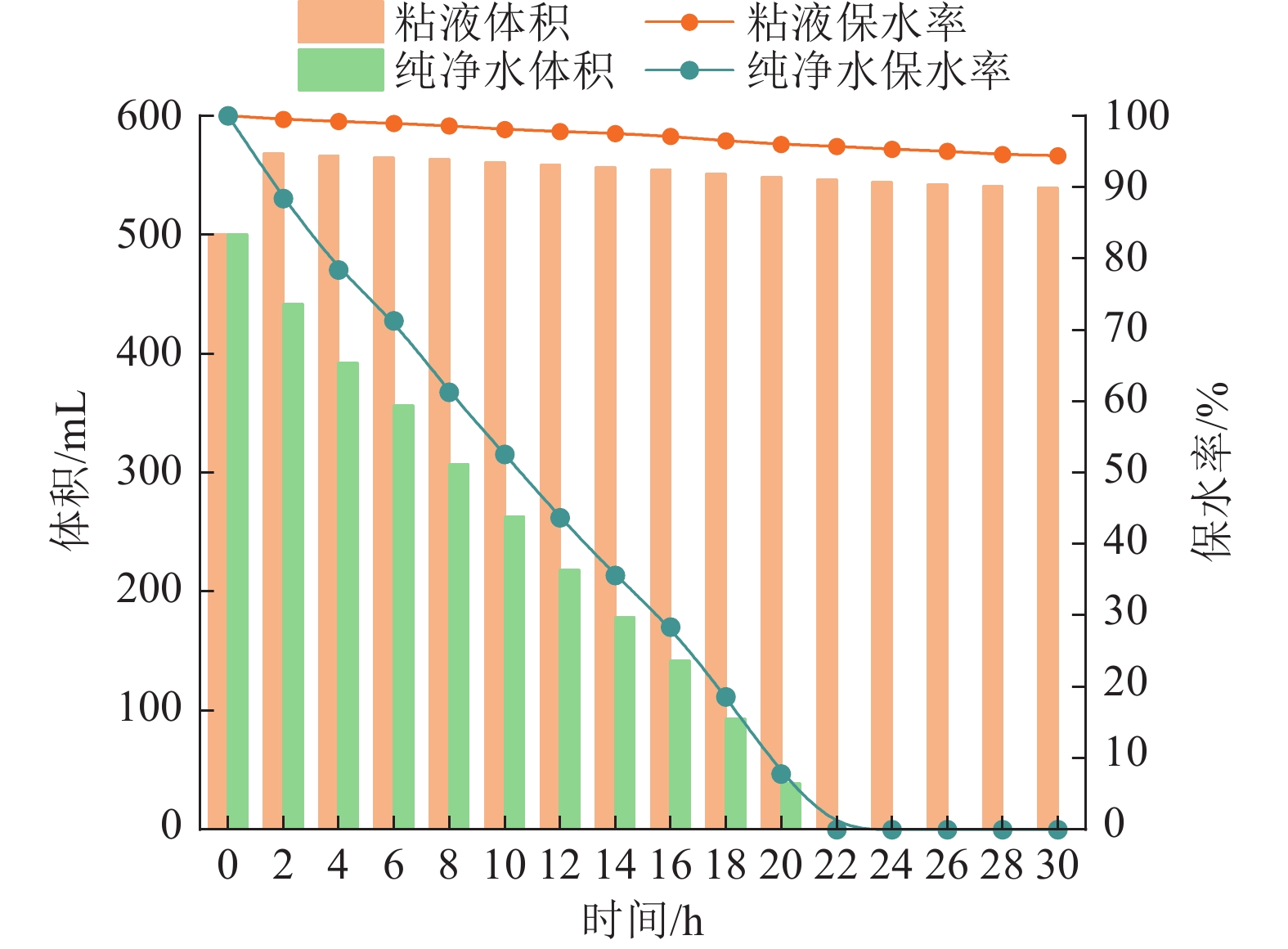

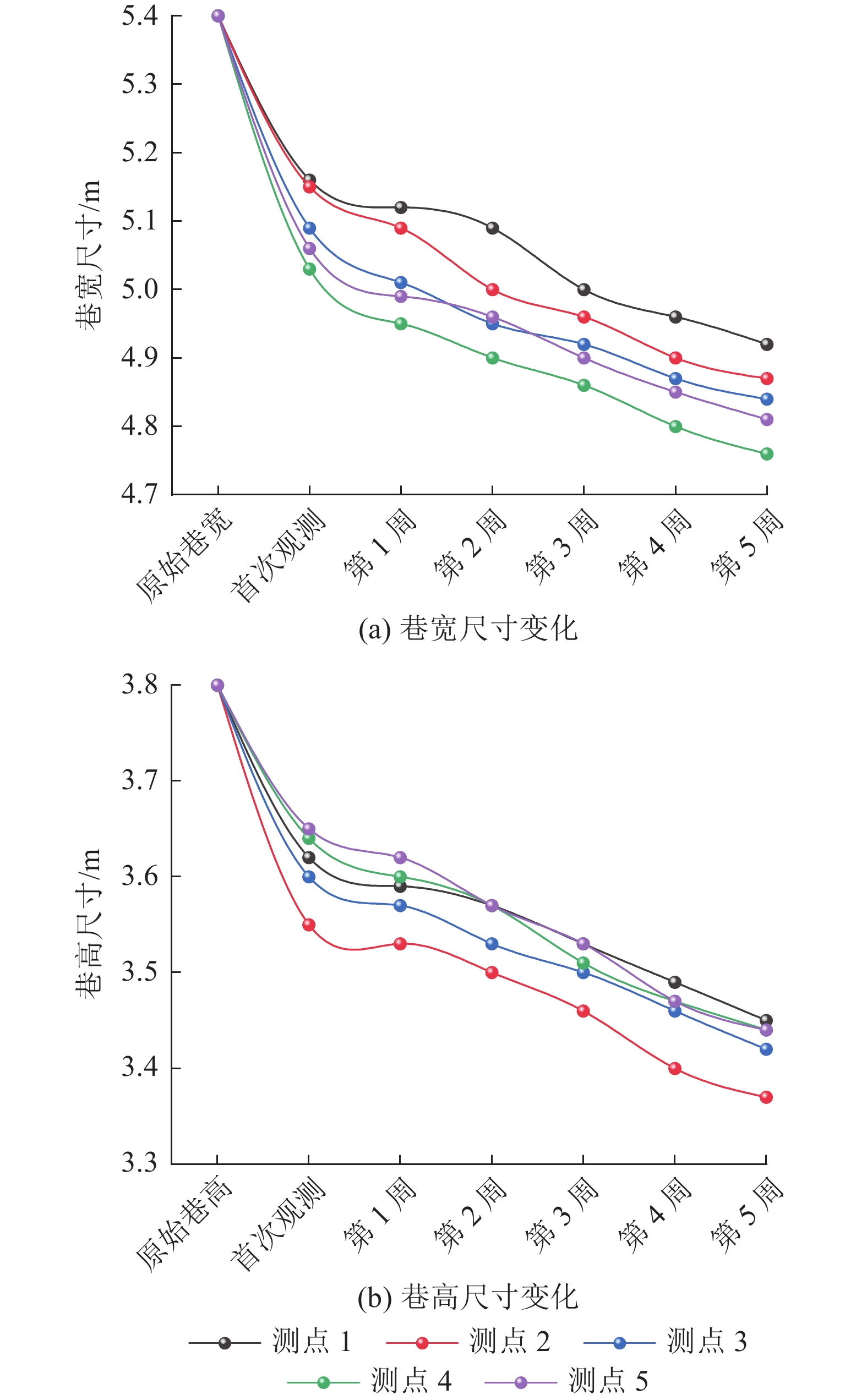

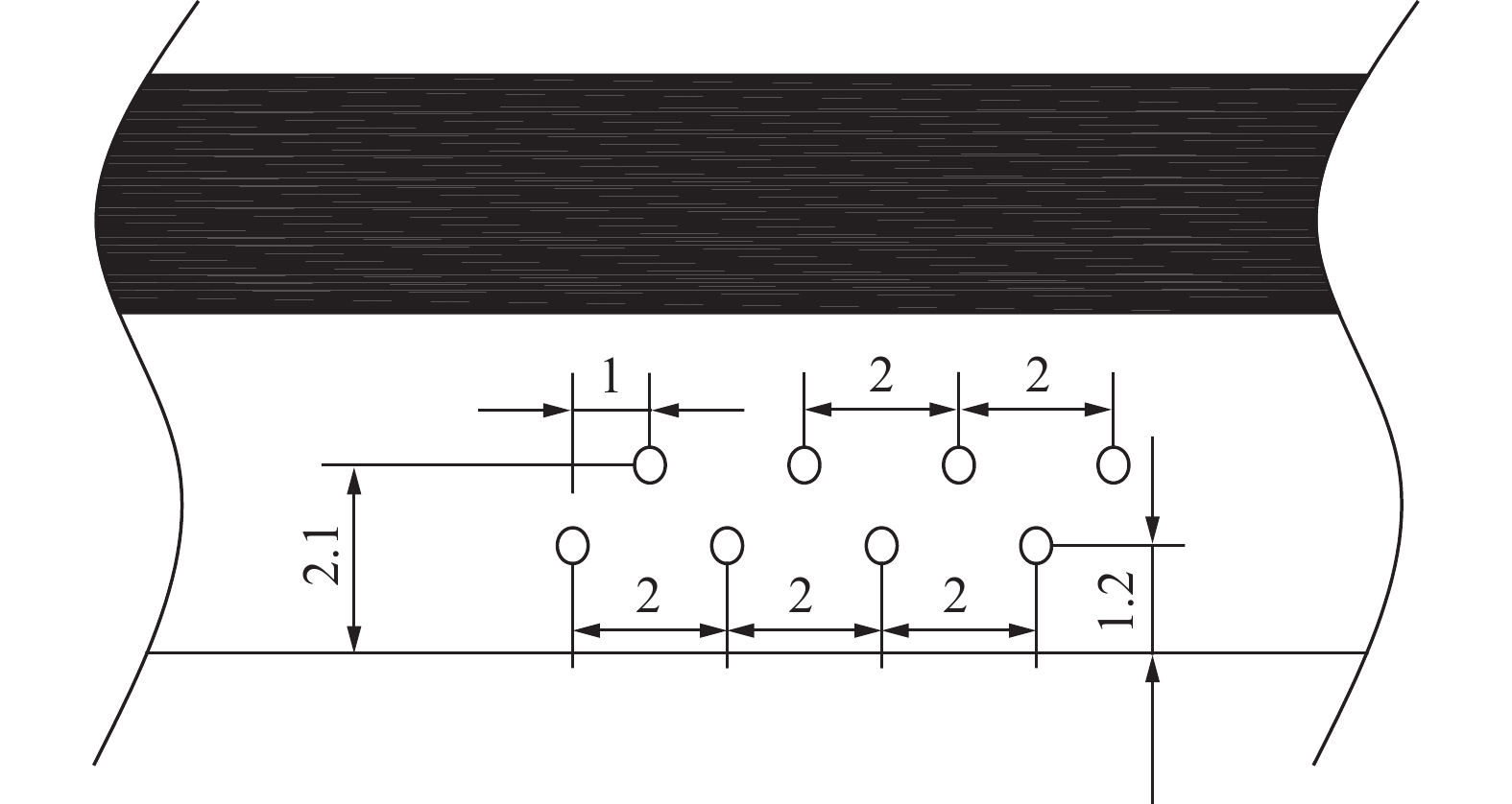

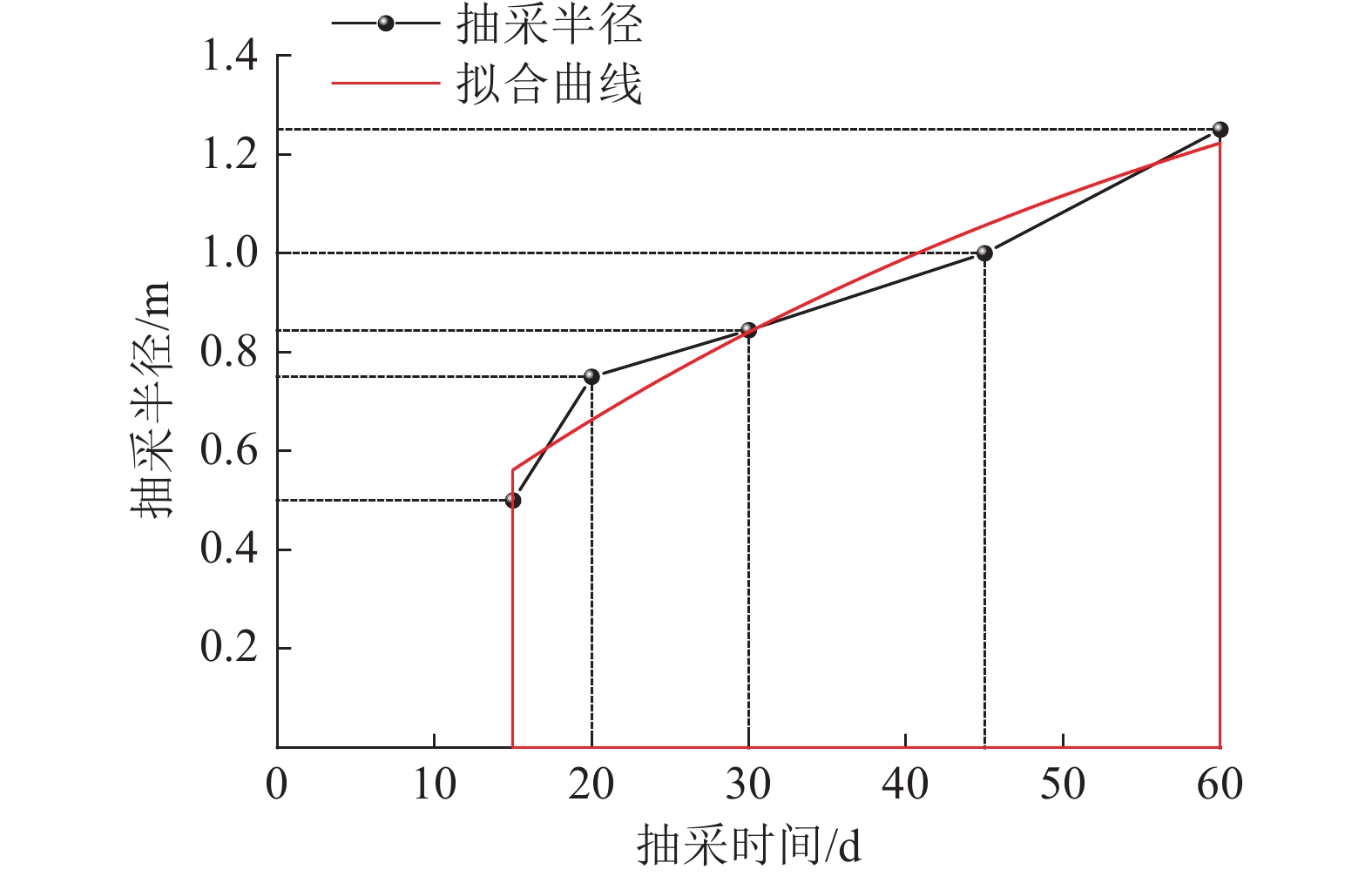

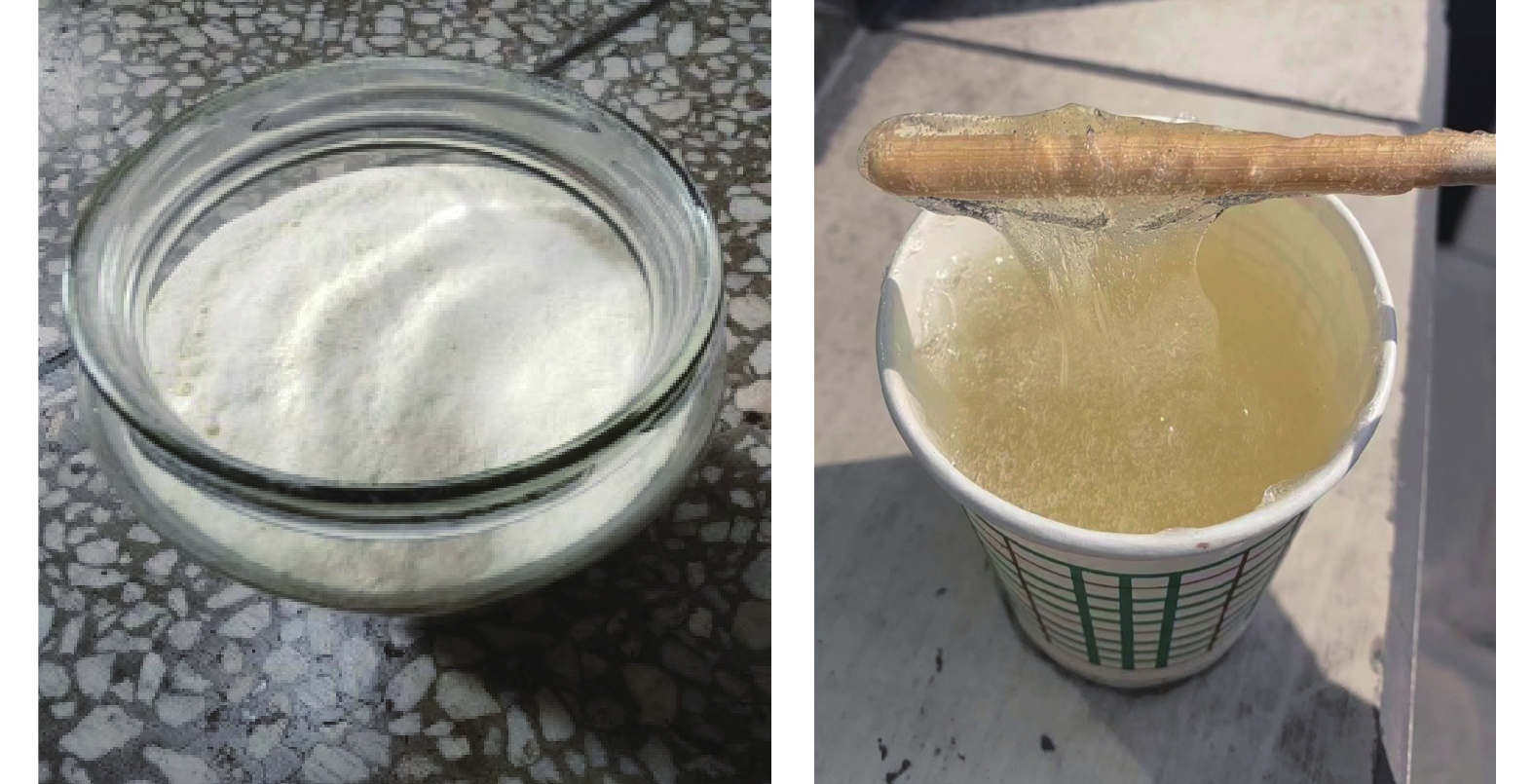

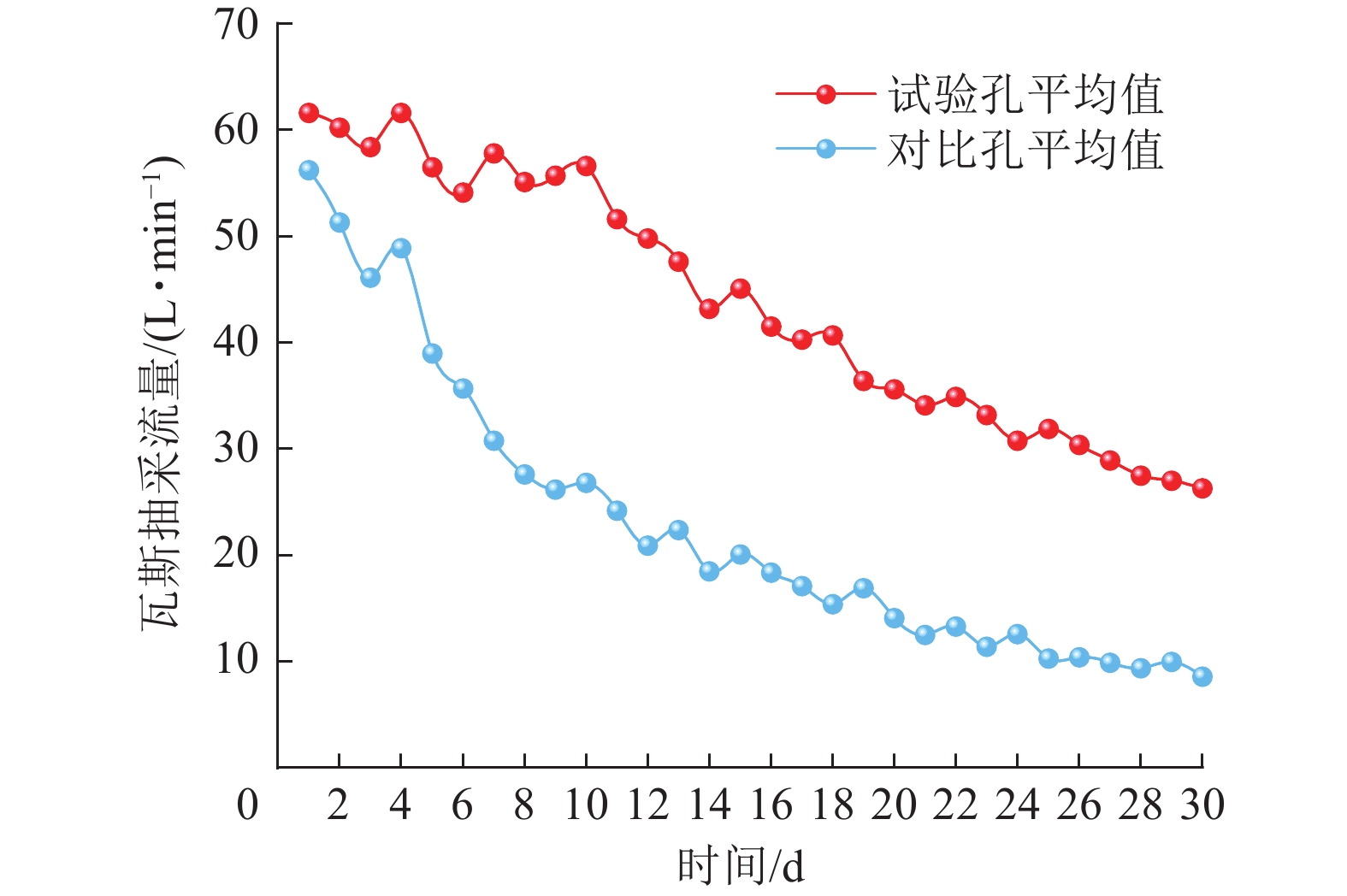

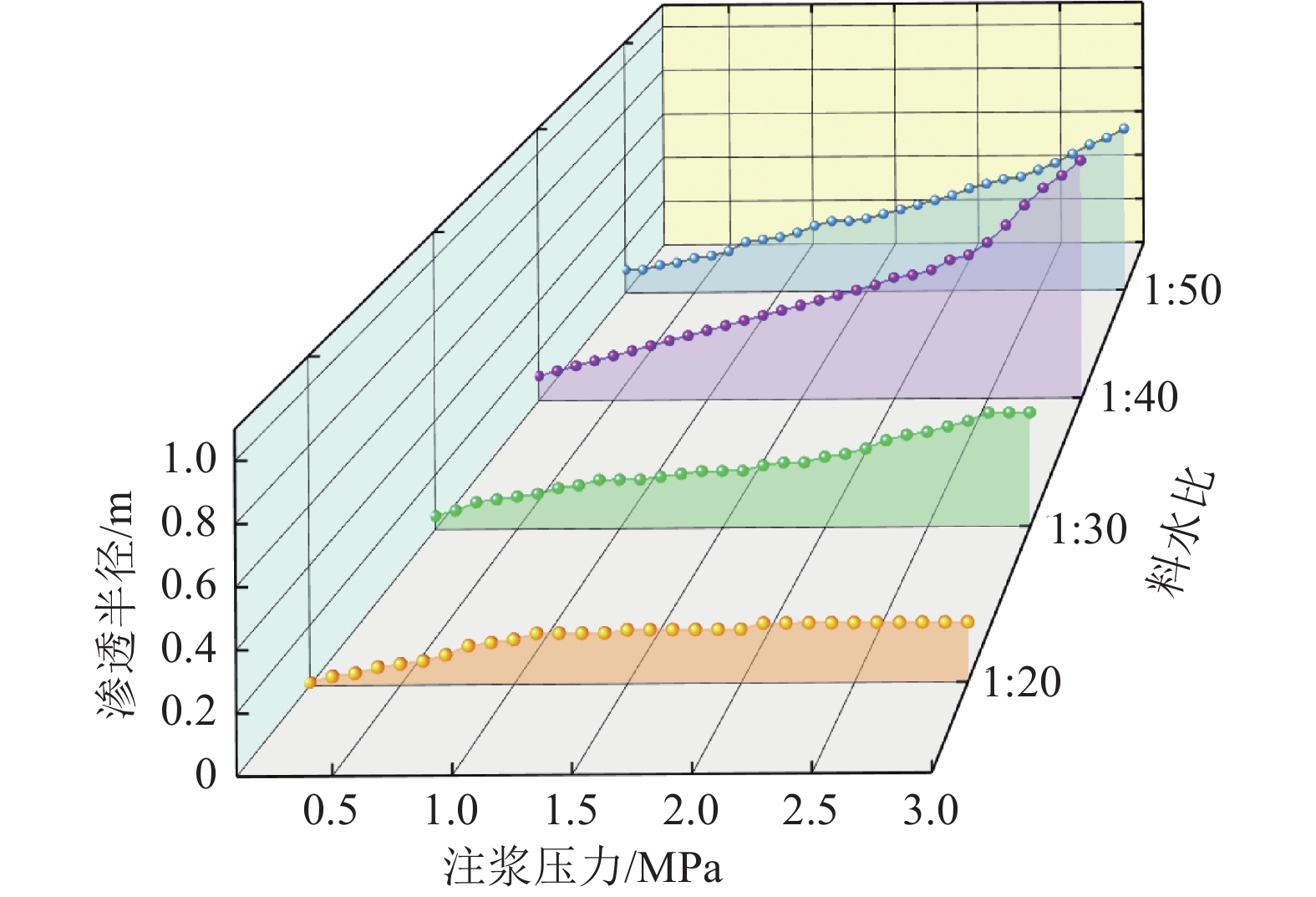

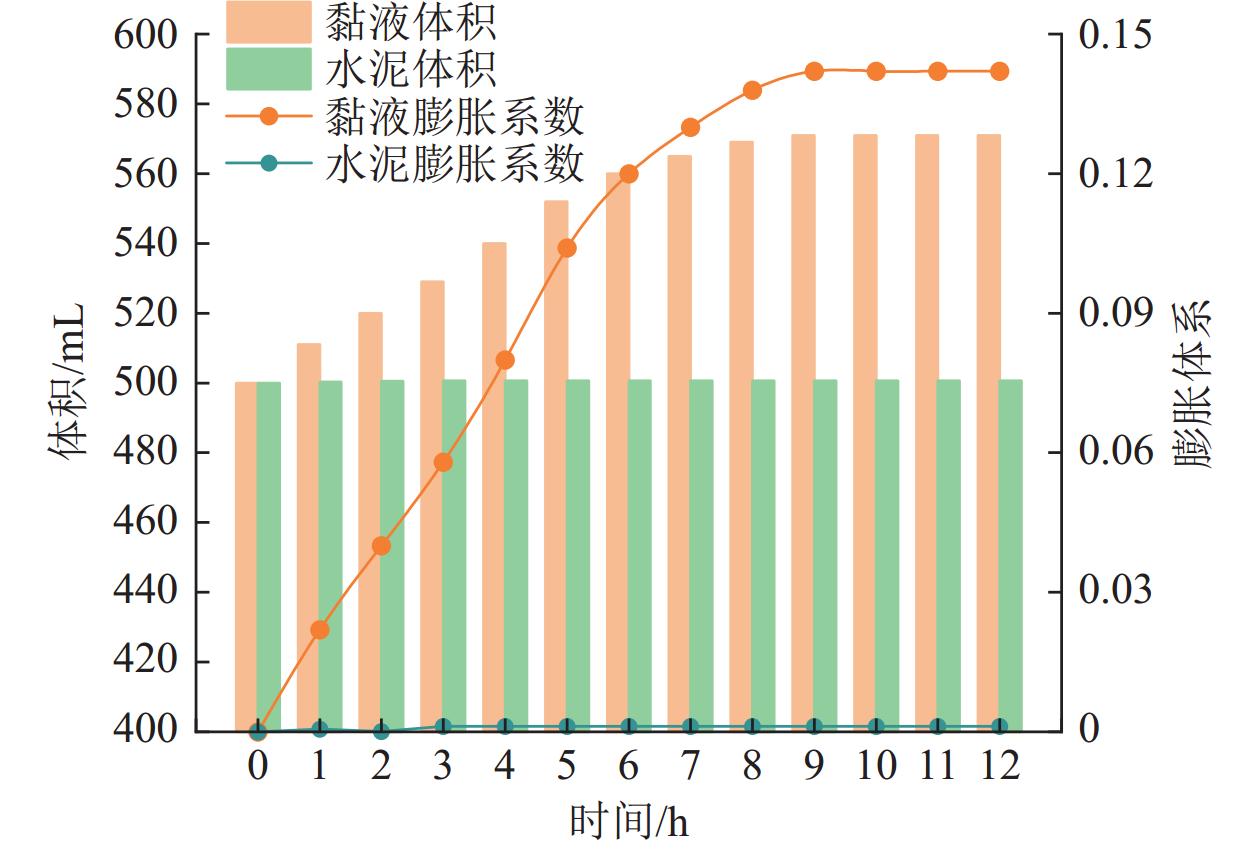

  • 摘要: 针对强矿压−高瓦斯复合动力灾害共治技术难题,以纤维素醚为基料研发了新型黏液封孔材料,实验分析了该黏液材料的膨胀性能、保水性能和渗透性能,构建了复合动力灾害钻孔卸压和高效抽采一体化防治技术体系,确定了不同条件下卸压段间距及有效抽采半径,优化了一体化钻孔技术参数,考察了该技术的卸压效果和抽采效果,实现了一孔多用及矿压与瓦斯共治。研究结果表明:新型黏液封孔材料膨胀系数为14.2%,30 d的失水率仅为5%,渗透半径达到1.0 m,说明该材料具有较好的膨胀和保水性能以及较远的渗透性能;将卸压孔与抽采孔合二为一,采用新型黏液材料进行封孔,并将黏液封孔段布置在应力集中区,通过“固封液、液封气”技术原理实现带压封孔,既可提高钻孔封孔质量,又能充分让压,不影响钻孔卸压效果;卸压段间距与矿压危险等级成反比,与卸压孔孔径呈正比,依据钻屑量和钻孔孔径确定了不同条件下卸压段布孔间距,并采用压差法确定了不同抽采时间钻孔有效抽采半径,综合考虑钻孔卸压半径和有效抽采半径实现钻孔一体化布置;采用表面位移观测和钻屑量指标对钻孔卸压效果进行考察,表明该技术可有效降低矿压危险等级并控制巷道围岩变形;一体化钻孔采用新型黏液材料进行封孔,瓦斯平均抽采浓度由此前的32.9%提高到64.87%,提升了1.97倍,平均瓦斯抽采纯流量也提高了1.91倍,说明钻孔卸压和高效抽采一体化技术可有效防治强矿压−高瓦斯复合动力灾害。研究成果可为复合灾害矿井安全高效生产提供技术支持。



    Abstract: Addressing the technical challenges posed by the compound disaster of intense mining pressure and high gas concentration, this study developed a novel viscous sealing material based on cellulose ether. Experimental analyses were conducted to evaluate the expansion, water retention, and penetration capabilities of the sealing material. An integrated system for drilling pressure relief and efficient gas extraction prevention and control technology was established. The spacing of pressure relief sections and the effective extraction radius were determined under various conditions, optimizing technical parameters for integrated boreholes. The effectiveness of the technology in pressure relief and extraction was assessed, achieving multipurpose use of boreholes and simultaneous management of mining pressure and gas. Results indicate that the new viscous sealing material exhibits a 14.2% expansion coefficient, with only a 5% water loss rate over 30 days and a penetration radius up to 1.0m, demonstrating superior expansion, water retention, and penetration performance. By combining pressure relief and extraction holes and strategically placing viscous sealing sections in stress concentration areas, the technology utilizes principles such as “solid sealing fluid, liquid sealing fluid” to ensure effective pressure sealing without compromising drilling efficacy. The spacing of pressure relief sections correlates inversely with mining pressure hazard levels and directly with borehole diameter, determined by drilling cuttings and borehole conditions. Extraction timings for different boreholes were determined using a differential pressure method, considering varying extraction radii and pressure relief effects. Evaluation of borehole pressure relief through surface displacement observations and drill cutting indicators confirms the technology effectively reduces mining pressure hazards and controls tunnel deformation. Integrating the new viscous sealing material in boreholes increased average gas extraction concentrations from 32.9% to 64.87%, nearly doubling the average pure gas flow rate, highlighting the effectiveness of the integrated drilling pressure relief and high-efficiency extraction technology in preventing and controlling complex dynamic disasters involving intense mining pressure and high gas levels. These findings provide crucial technical support for safe and efficient mining operations facing compound disasters.



/
