刘利斌, 段东, 郑朝阳. 基于岩石声发射Kaiser效应的地应力测试研究[J]. 煤炭科学技术, 2020, 48(12).
引用本文: 刘利斌, 段东, 郑朝阳. 基于岩石声发射Kaiser效应的地应力测试研究[J]. 煤炭科学技术, 2020, 48(12).
LIU Libin, DUAN Dong, ZHENG Chaoyang. Study on in-situ stress testing based on Kaiser effect of rock acoustic emission[J]. COAL SCIENCE AND TECHNOLOGY, 2020, 48(12).
Citation: LIU Libin, DUAN Dong, ZHENG Chaoyang. Study on in-situ stress testing based on Kaiser effect of rock acoustic emission[J]. COAL SCIENCE AND TECHNOLOGY, 2020, 48(12).

基于岩石声发射Kaiser效应的地应力测试研究

Study on in-situ stress testing based on Kaiser effect of rock acoustic emission

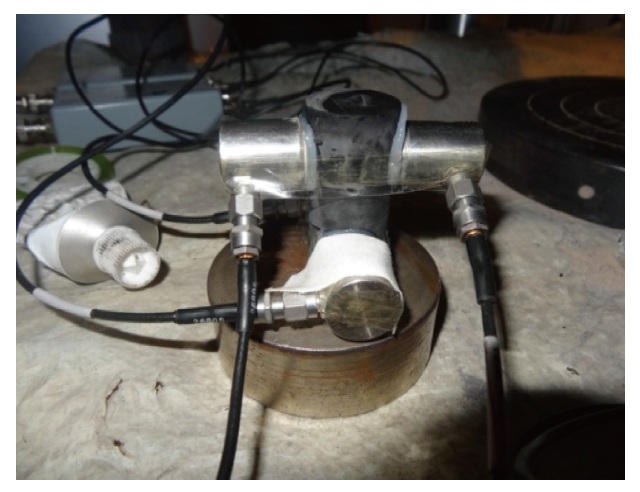

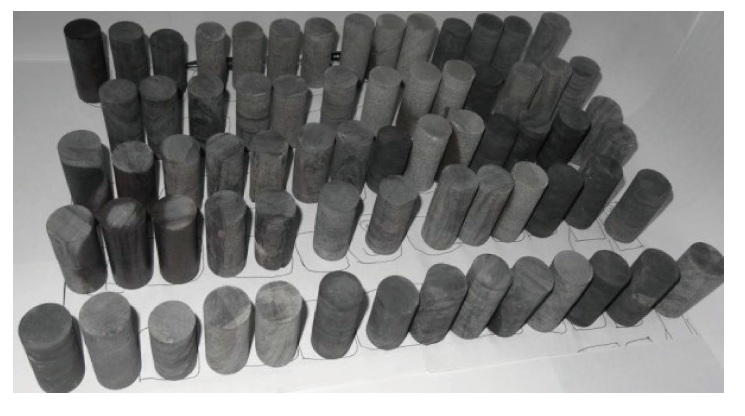

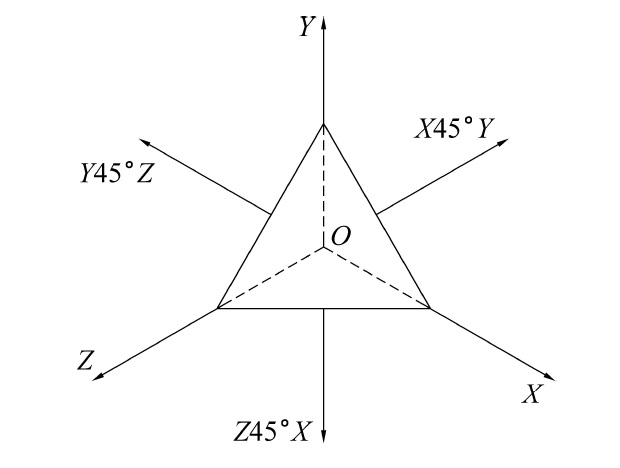

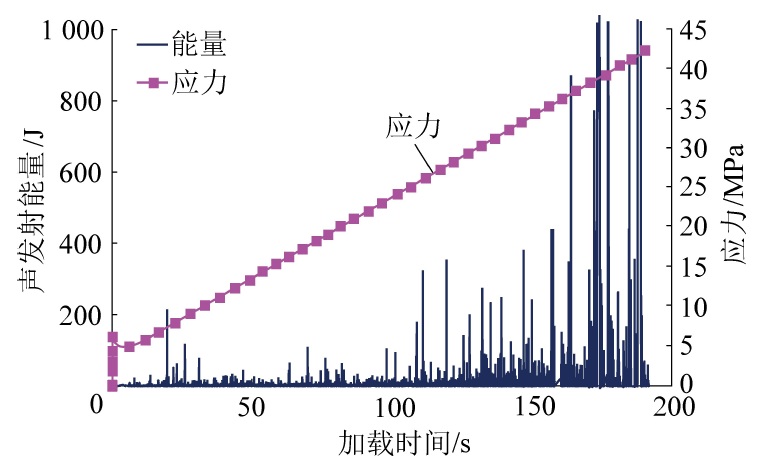

  • 摘要: 地应力是引起地下工程岩体变形破坏的根本作用力,地应力测试技术在煤矿安全高效开采中具有重要作用。以郑庄煤矿3号和15号煤层为工程背景,基于弹性力学及岩石声发射Kaiser效应对测试地应力大小和方向进行了理论分析,采用在试验室试验对地应力分布规律展开了研究,并与现场测试结果进行对比验证。研究结果表明:3号和15号煤层垂直应力、最大水平主应力及最小水平主应力均随埋深增加而增大,2层煤地应力分布规律十分相似,属中等应力区域;2层煤最大水平主应力>垂直应力>最小水平主应力,即构造应力大于自重应力,属典型以构造应力为主应力场;最大水平主应力方向较稳定,基本集中在N27°W左右;2层煤两顶、底板平均水平主应力(最大水平主应力与最小水平主应力的平均值)与垂直应力比值分别为0.968、0.948、0.938、0.934。3号煤层平均水平主应力与垂直应力之比大于15号煤层。研究结果对采用岩石声发射Kaiser效应测试矿井地应力提供了一定参考价值与借鉴意义。



    Abstract: in-situ stress is the fundamental fore that causes deformation and failure of underground engineering rock mass. In-situ stresstesting technmology plays an important role in safe and efficient mining of coal mines.Basel on the enginering background of No.3 andNo.l5 coal seams in Zhengzhuang Coaul Mine, this paper conducts a theoretical analysis of the magnitude and diection of in-situ stresshased on elastic mechanics and ock acoustic emission Kaiser effect. It uses laboratory tests to sturly the distribution of ground stress, andcompare and verify with field test results. The research resuls show that the vertical stres , the maxinum horizontal principal stres andthe minmimum horizontal principal stess of the No.3 and No.15 coal seams all increase with the increase of the buriedl depth. The in-situstress distribution rules of the two coal seams are very similar and belong to the medium stes area; The maximum horizontal principalsltress of the coal seam> the vertical stress> the mininmm horizontal principal strss , that is, the tectonic stress is grealer than the self-weight stress,which is a typical stress field with tectonic stress ; the direction of the mavinmum horizontal principal stress is relatively stableand is basically concentrated anund N27° W.The ratio of the average horizontal principal stress( the average of the maxvinmm horizontalprincipal stress and the minimum horizontal principal strss ) to the vertical stress of the No.3 and No.15 coal seams roof and floor ae0.968,0.948,0.938,0.934.The natio of the average horizontal principal stress to the vertical stres of the No.3 coal seam is larger thanNo.15 coal seam.The research results provide a certain rederence value and significance for the use of moek acoustic emission Kaiser effectto test in-situ stress.



/
