倪文婧. 半焦点火特征时间的试验研究[J]. 煤炭科学技术, 2019, (7).
引用本文: 倪文婧. 半焦点火特征时间的试验研究[J]. 煤炭科学技术, 2019, (7).
NI Wenjing. Experimental study on semi-coke particle ignition characteristics[J]. COAL SCIENCE AND TECHNOLOGY, 2019, (7).
Citation: NI Wenjing. Experimental study on semi-coke particle ignition characteristics[J]. COAL SCIENCE AND TECHNOLOGY, 2019, (7).

半焦点火特征时间的试验研究

Experimental study on semi-coke particle ignition characteristics

  • 摘要: 为了设计符合半焦燃烧特性的燃烧系统,在保证其系统安全性的前提,进一步提高其能源利用效率,通过新型高频振荡单分散煤粉给粉器,结合多元扩散火焰燃烧器技术,并配合煤粉全辐射信号分析试验方法,研究了温度和含氧量变化对半焦颗粒着火特性的影响。试验结果表明:当选择归一化信号强度0.1作为点火点时,半焦的特征点火时间在10 ms量级;增加环境温度会加快半焦表面的化学反应速率,从而缩短半焦的点火时间,1 800 K时的点火时间小于1 200 K约4 ms;增加同样会缩短半焦的点火时间,氧气浓度为0.1时的点火时间较0.2时降低了约2 ms;由于点火特征时间改变带来的燃烧器特征尺寸变化约为0.15 m。

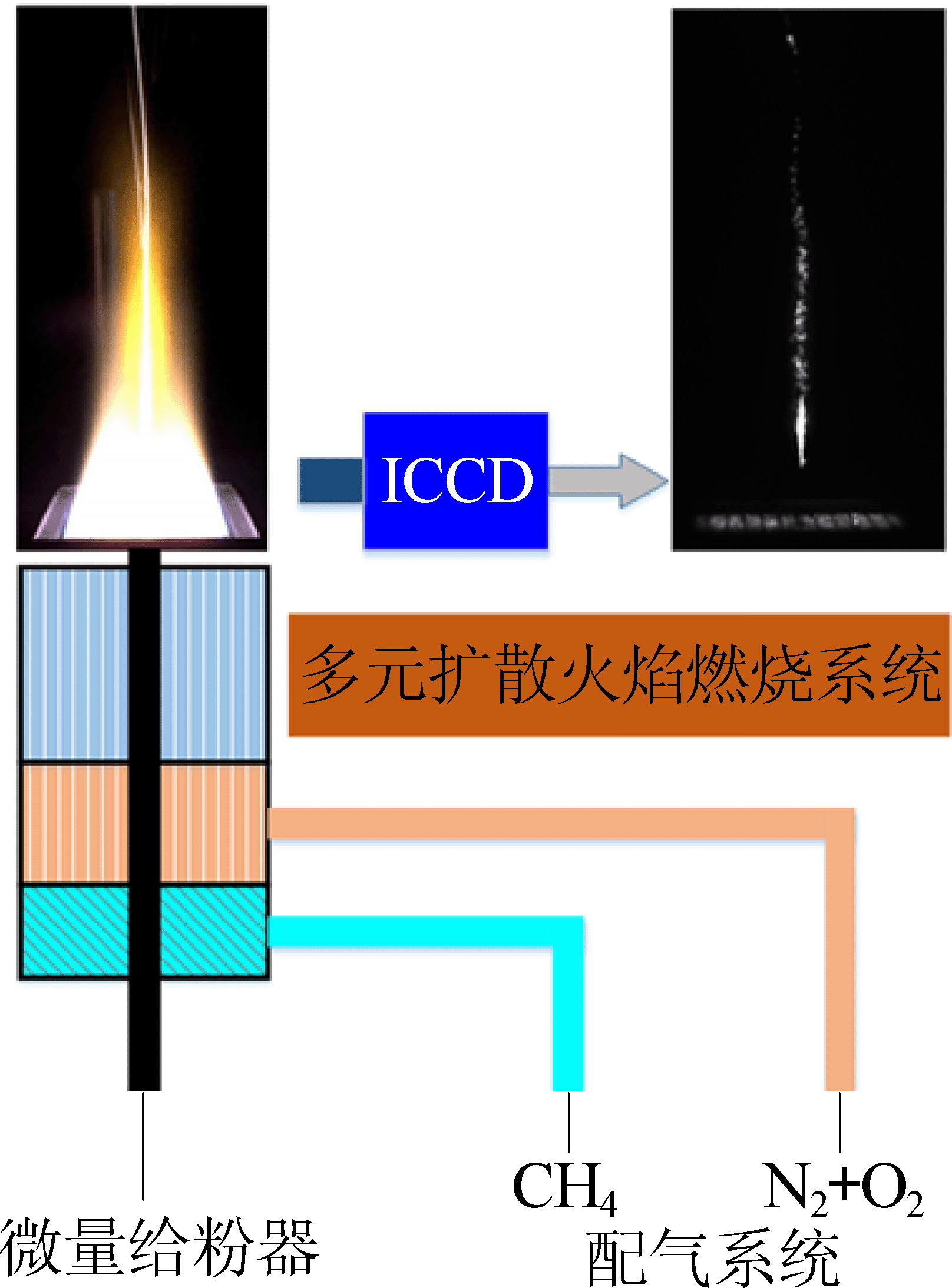

    Abstract: In order to design a combustion system that meets the semi-coke combustion characteristics,the energy utilization efficiency is further improved on the premise of ensuring the safety of the system.In this paper,a multi non-premixed flat-flame Hencken burner system combined with a vibrated de-agglomeration particle feeder was used to investigate the effect of ambience temperature and the oxygen fraction on the semi-char ignition characteristic time.The experimental results shows when the normalized signal strength of 0.1 is selected as the ignition point,the characteristic ignition time of the semi-coke is about 10 ms; Increasing the ambient temperature accelerates the chemical reaction rate of the semi-coke surface and shortens the ignition time,and ignition time at 1 800 K is less than 1 200 K for about 4 ms; the increase will also shorten the ignition time of the semi-coke.The ignition time at an oxygen concentration of 10% is reduced by about 2 ms from 20%; the size of the burner changes due to the change in the ignition characteristic time is about 0.15 meters.



/
