马智会, 潘荣锟, 马智勇, 李聪, 胡代民. 顺层钻孔瓦斯抽采漏气规律及封孔技术研究[J]. 煤炭科学技术, 2020, 48(8): 90-96.
引用本文: 马智会, 潘荣锟, 马智勇, 李聪, 胡代民. 顺层钻孔瓦斯抽采漏气规律及封孔技术研究[J]. 煤炭科学技术, 2020, 48(8): 90-96.
MA Zhihui, PAN Rongkun, MA Zhiyong, LI Cong, HU Daimin. Study on gas leakage law and hole sealing technology of gas drainage in layered drilling[J]. COAL SCIENCE AND TECHNOLOGY, 2020, 48(8): 90-96.
Citation: MA Zhihui, PAN Rongkun, MA Zhiyong, LI Cong, HU Daimin. Study on gas leakage law and hole sealing technology of gas drainage in layered drilling[J]. COAL SCIENCE AND TECHNOLOGY, 2020, 48(8): 90-96.

顺层钻孔瓦斯抽采漏气规律及封孔技术研究

Study on gas leakage law and hole sealing technology of gas drainage in layered drilling

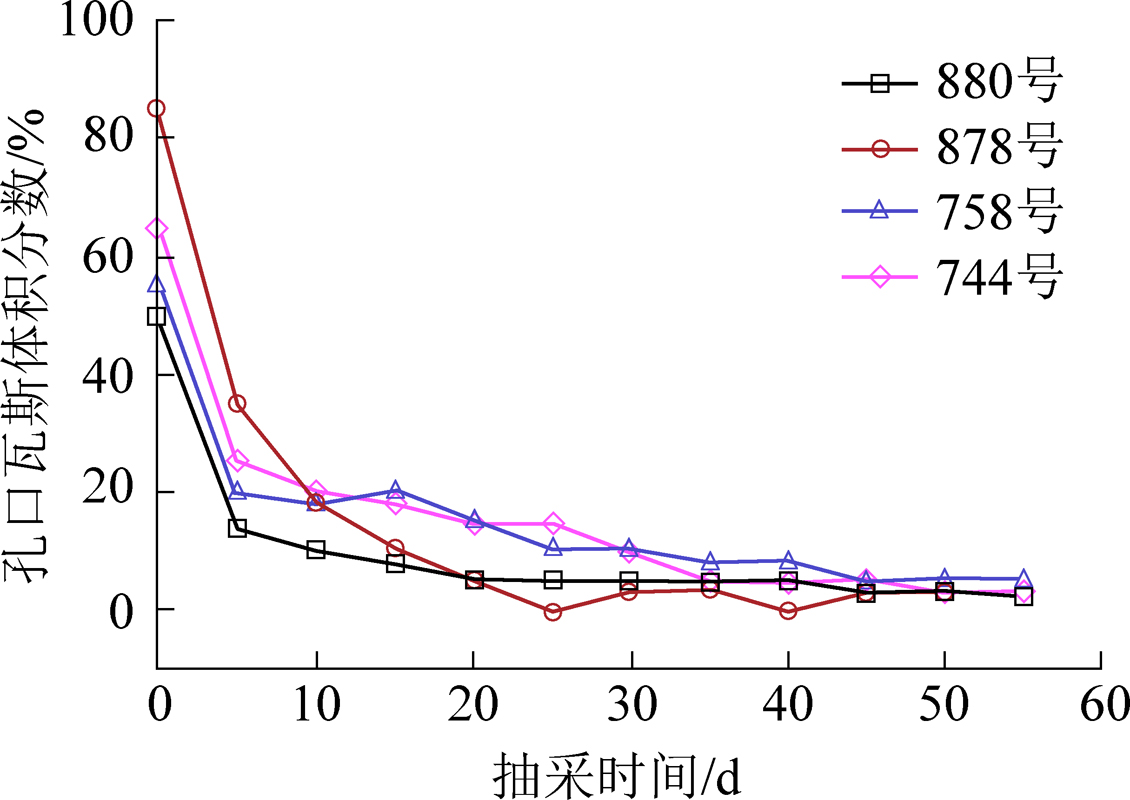

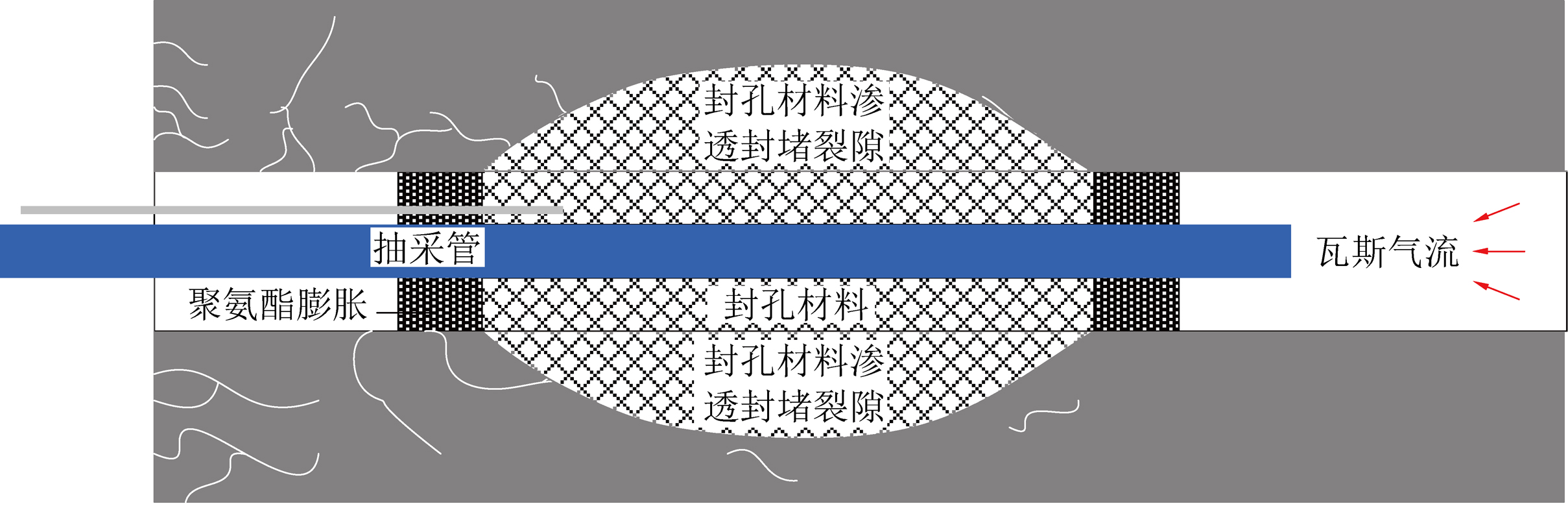

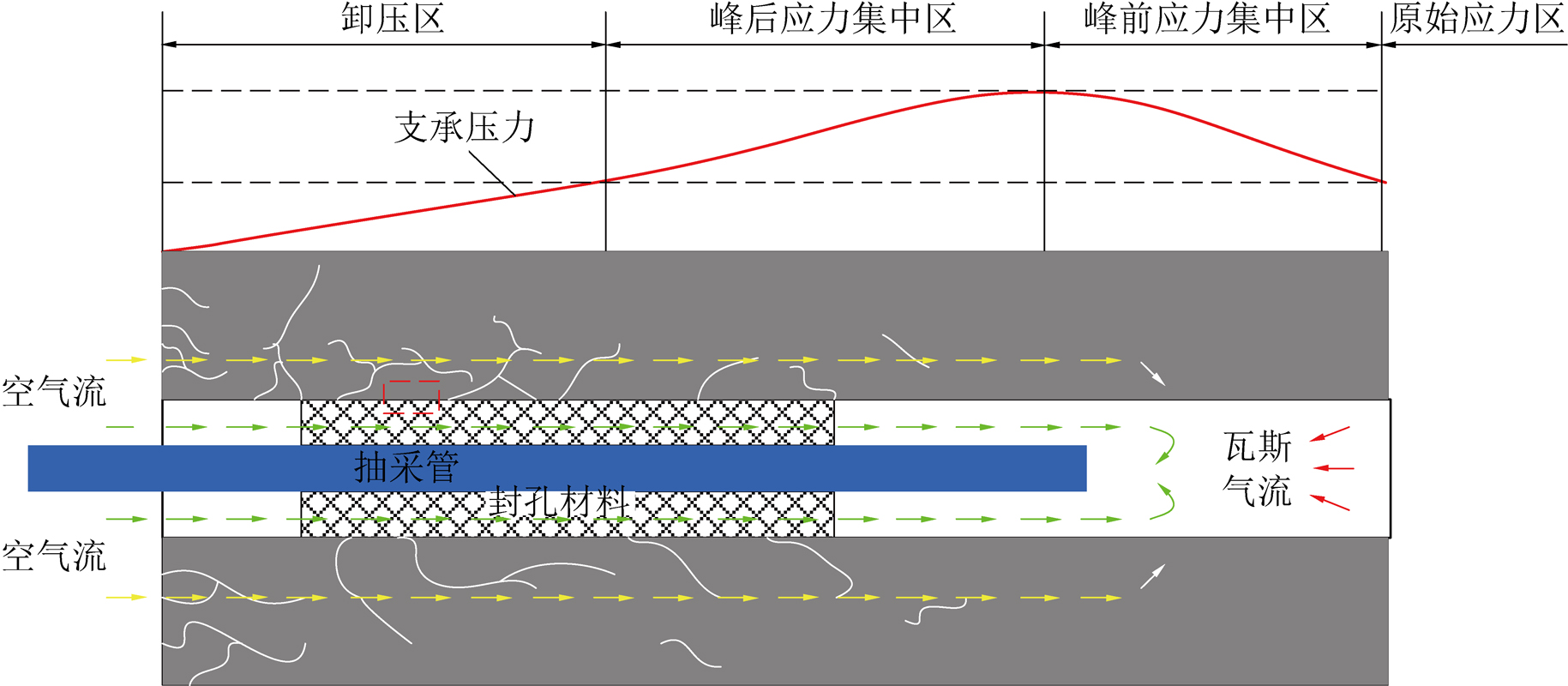

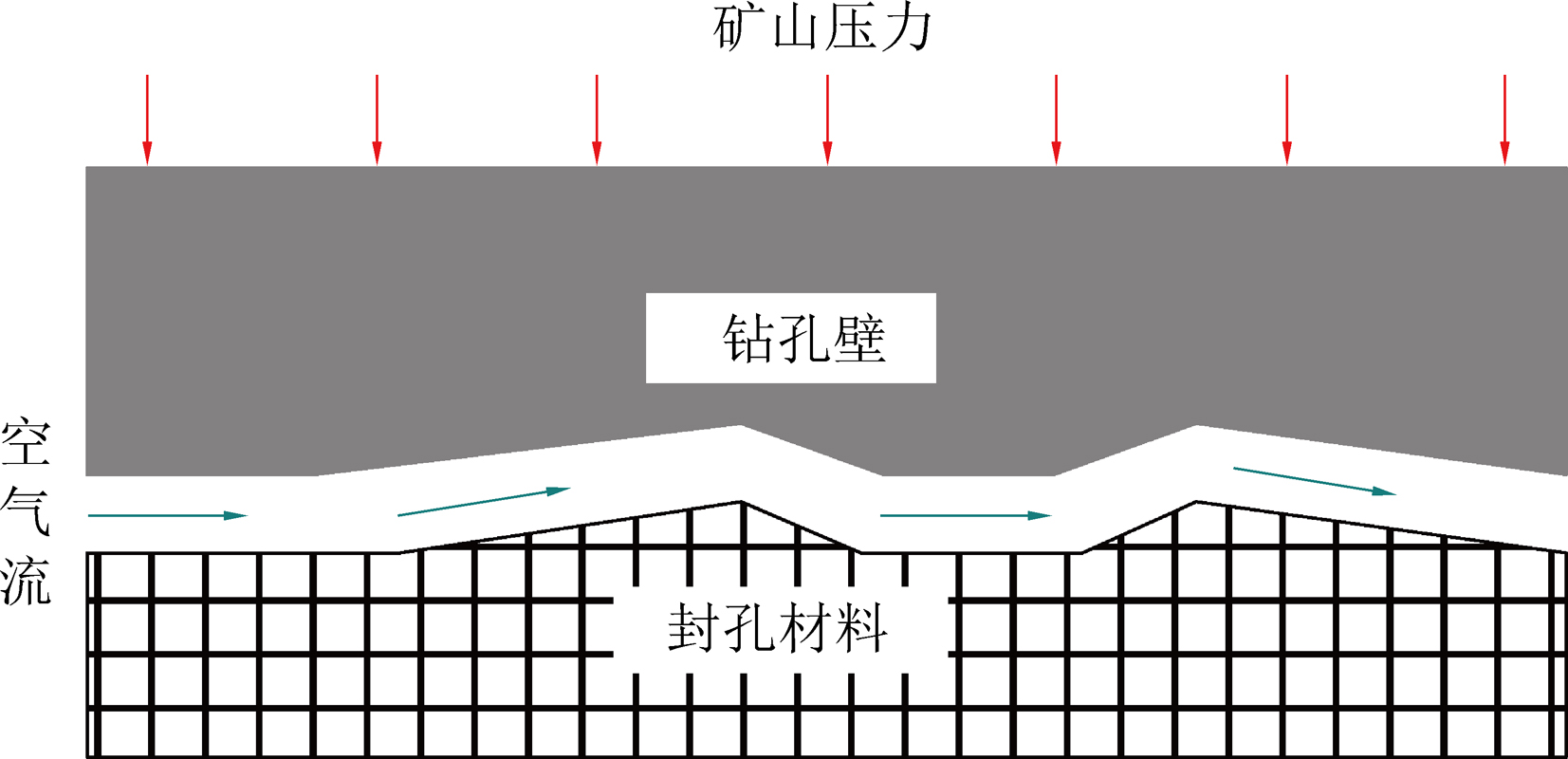

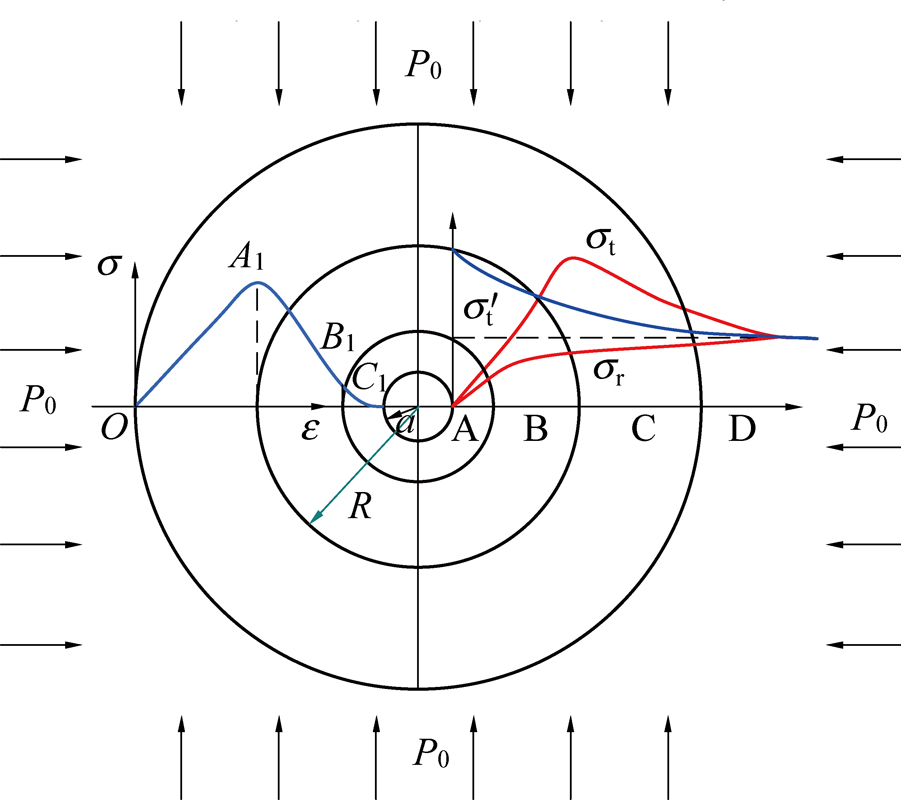

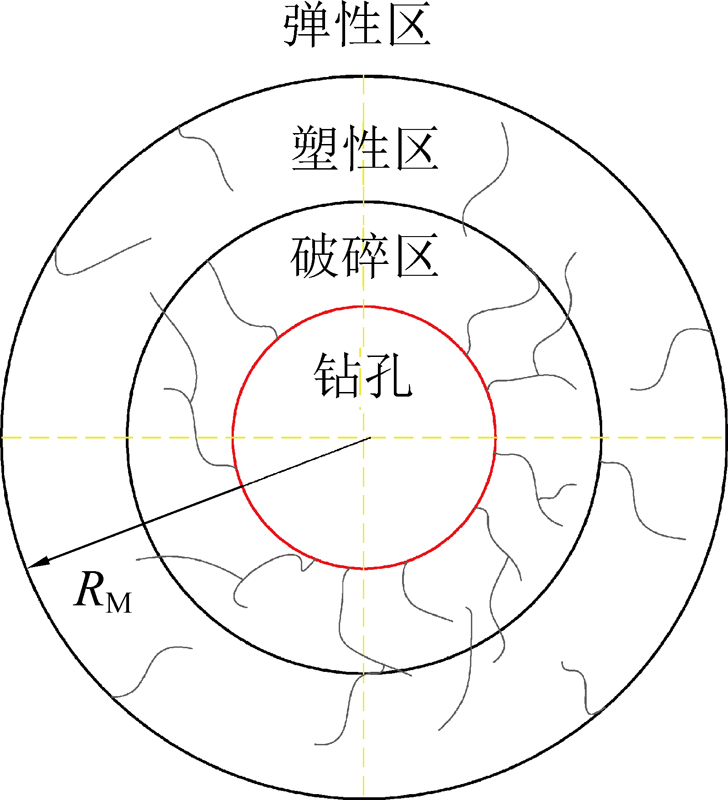

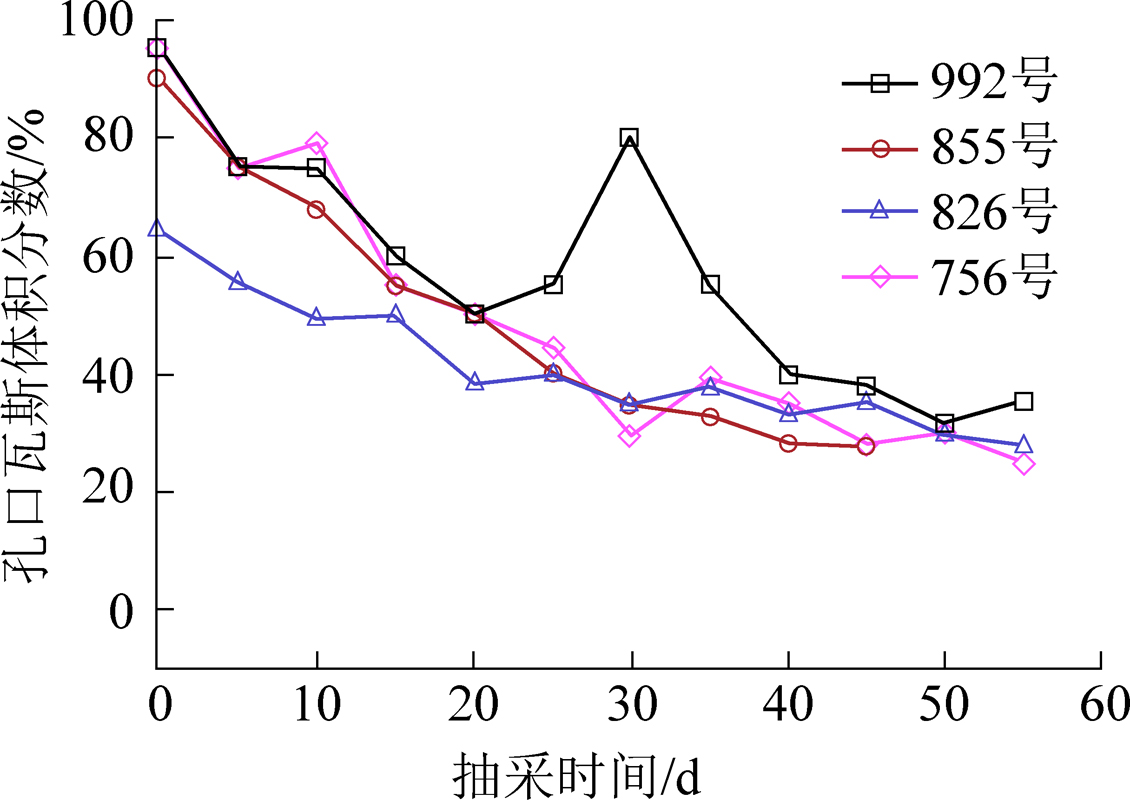

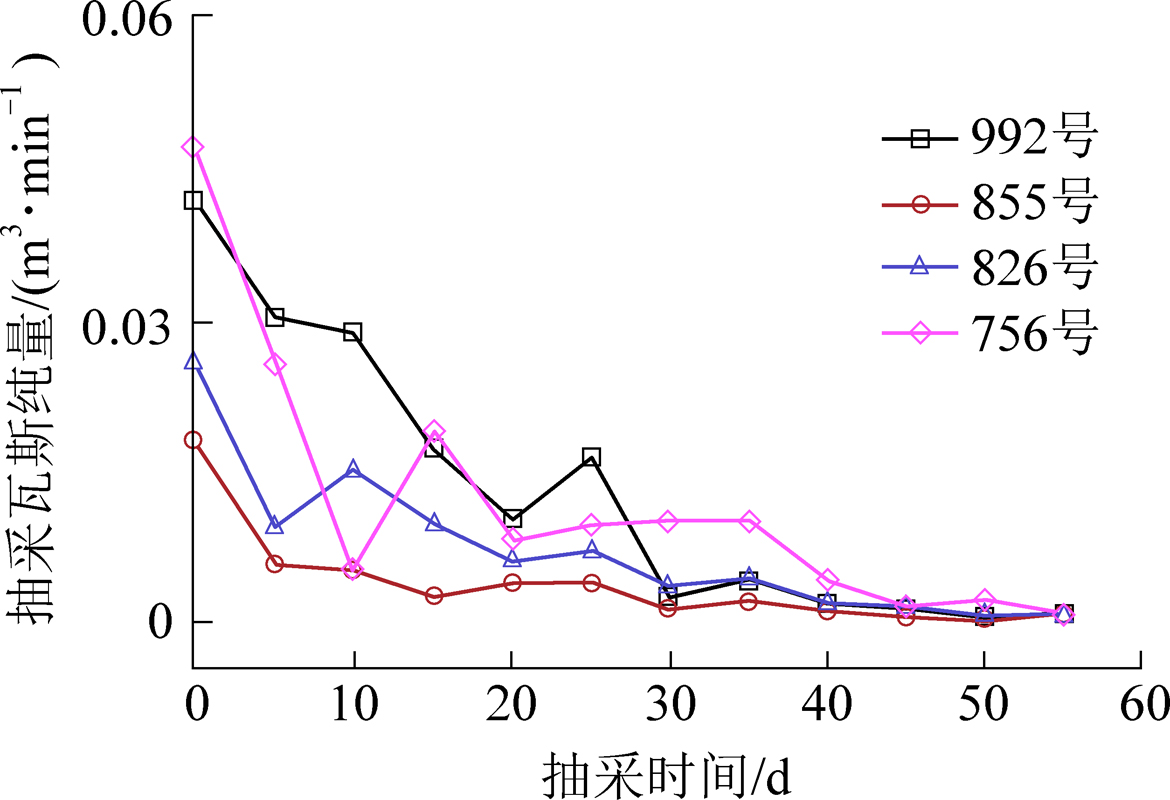

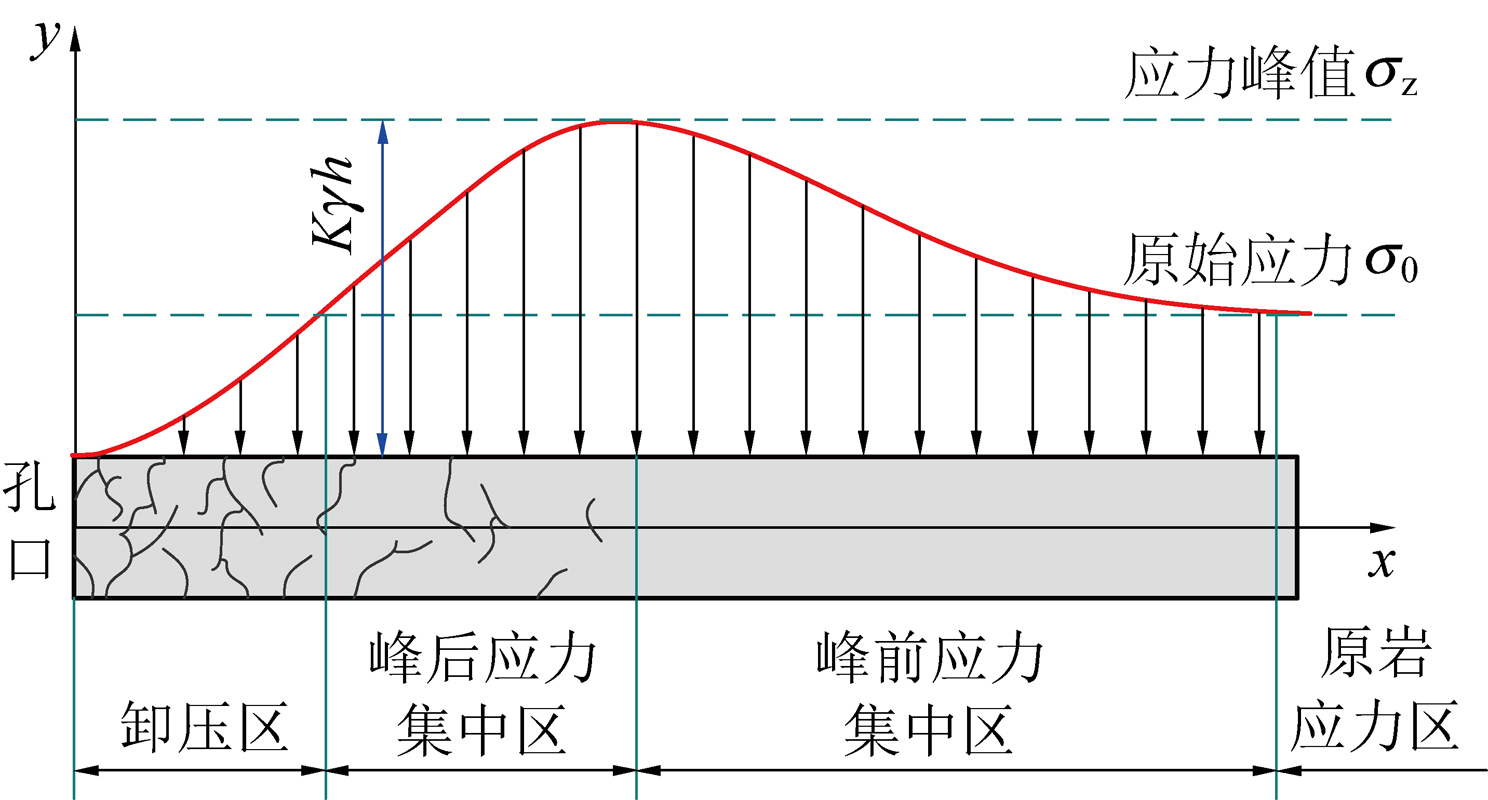

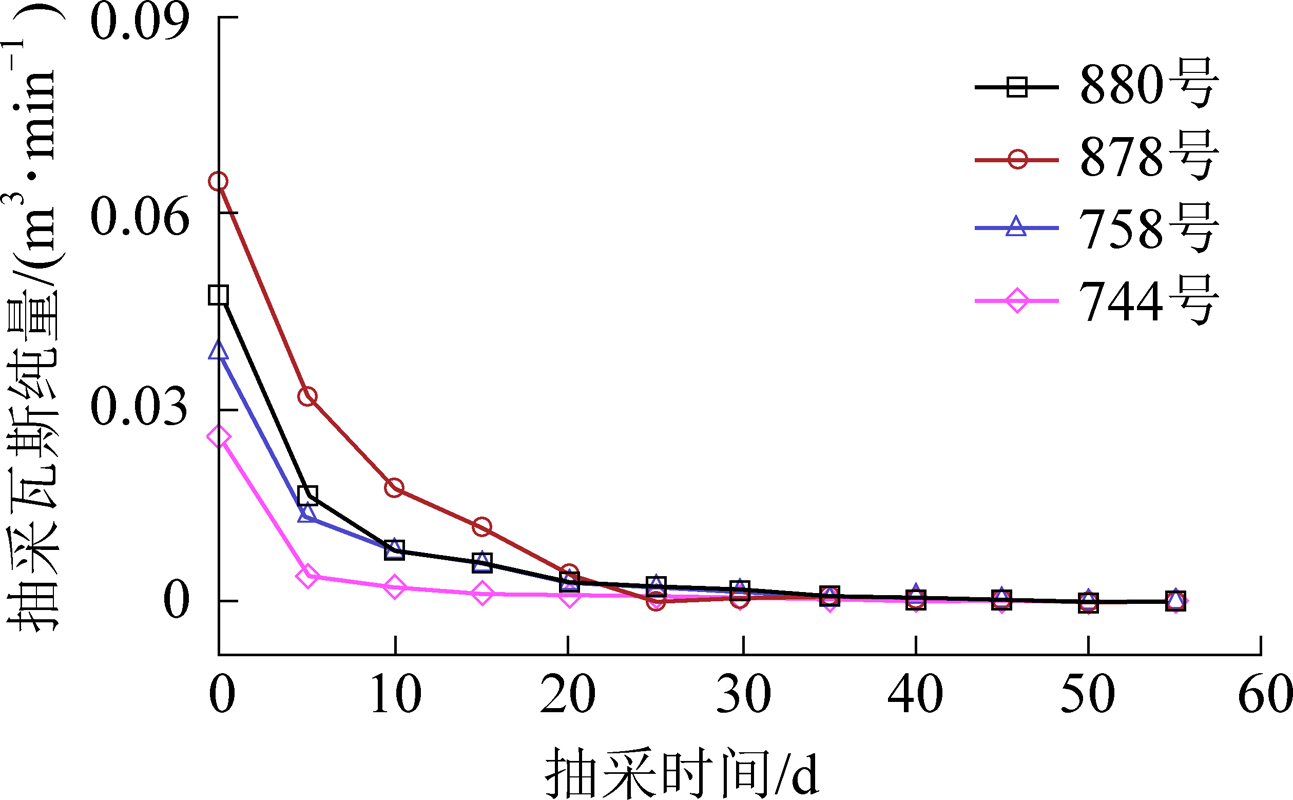

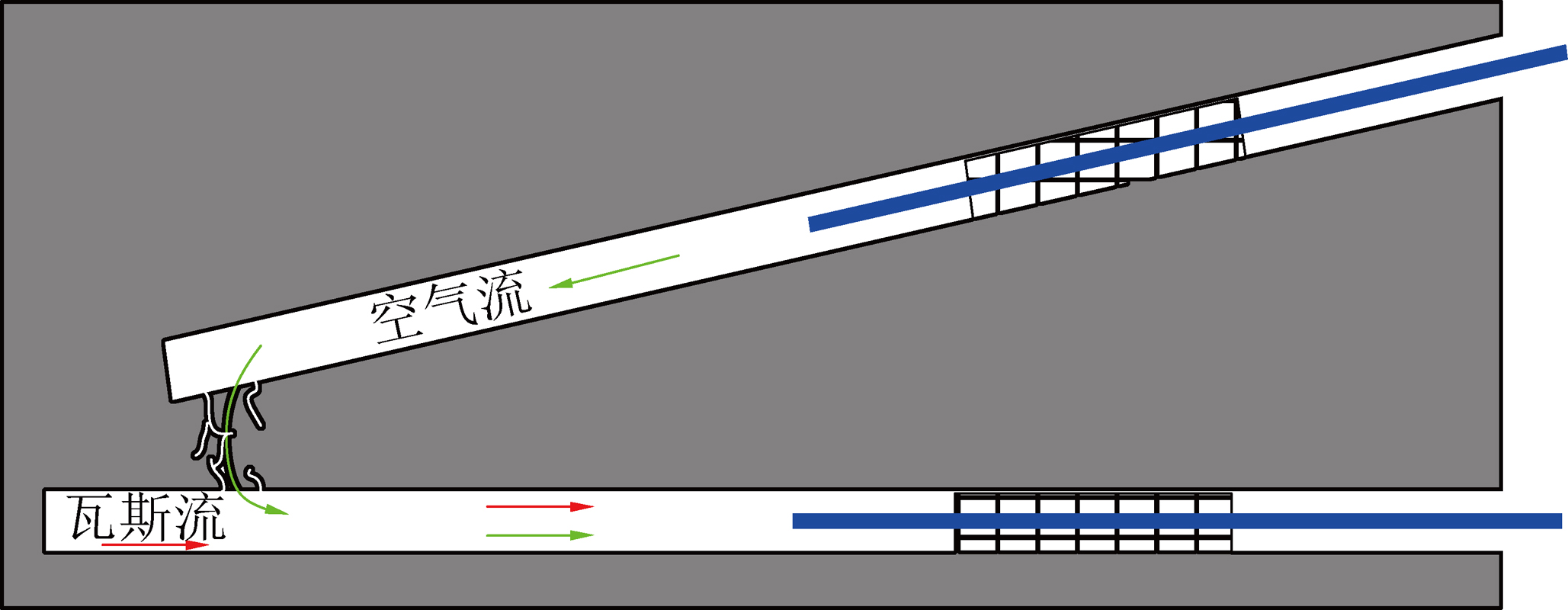

  • 摘要: 顺层钻孔瓦斯抽采时,在矿山压力作用下,极易出现抽采漏气的情况,为了提高顺层钻孔瓦斯抽采效果,据巷道围岩应力分布规律,分析了抽采钻孔轴向和径向的应力和裂隙分布特征,提出顺层抽采钻孔的4种漏气通道分别为:封孔材料漏气、钻孔周围煤体漏气、封孔材料与钻孔壁间隙漏气以及邻近钻孔影响漏气。基于漏气通道分析结果,得出顺层钻孔抽采应堵实钻孔径向松动圈和设计合理的封孔长度的封孔原则。根据钻孔漏气机理及封孔原则并结合现场条件,对孟津煤矿原聚氨酯封孔工艺进行考察并优化,得出优化后的封孔深度应为20 m,并结合径向裂隙范围,提出了两堵一注全程注SRS-Ⅱ高强微膨胀型快速凝固封孔材料的封孔工艺,在12030运输巷进行了工业试验。通过对封孔优化前后的跟踪监测数据进行对比分析,得出封孔优化后的瓦斯抽采体积分数为原封孔工艺瓦斯抽采体积分数的1.1~1.9倍,优化后的瓦斯抽采纯量为原封孔工艺的2.6倍左右,且原封孔工艺较封孔优化后的抽采体积分数和抽采纯量衰减明显。因此,优化后的封孔工艺抽采效果较原工艺明显提高,为同类型矿井顺层抽采封孔提供了借鉴。



    Abstract: When gas is pumped along the stratum, under the action of mine pressure, gas leakage is very easy to occur.In order to improve the effect of bedding boreholes, the axial and radial stress and fracture distribution characteristics of the drainage holes were analyzed through the stress distribution law of surrounding rock of roadway. Four types of air leaking channels were put forward: leakage of sealing material, leakage of coal around the borehole, leakage between sealing material and borehole wall, and leakage influenced by adjacent borehole. Based on the gas leakage channels, the principle of sealing the radial loosening ring of the solid borehole and the reasonable design of the length of the sealed hole should be obtained. According to the mechanism of air leakage and the principle of hole sealing, combined with the site conditions, the original polyurethane hole sealing process in Mengjin coal mine was investigated and optimized. It was concluded that the optimized sealing depth should be 20 m. Combined with the radial fracture range, the sealing technology of two blocks and one injection of SRS-Ⅱ high strength micro expansion rapid solidification sealing material was put forward. The industrial test was carried out in No.12030 transportation roadway. By comparing and analyzing the tracking and monitoring data before and after the optimization, it is concluded that the volume fraction of gas drainage after the optimization of hole sealing is 1.1~1.9 times of the original hole sealing process, and the pure quantity of gas drainage after the optimization is about 2.6 times of the original hole sealing process, and the original sealing process has a significant attenuation compared with the optimized sealing concentration and extraction pure volume. Therefore, the extraction effect of the optimized sealing technology has significantly improved compared with the original technology, which provides a reference for the same type of mine drainage and sealing.



/
